Video Head Impulse Test

SYNAPSYS VHIT

Video Head Impulse Test

SYNAPSYS VHIT

SYNAPSYS VHIT is a unique system that represents a fundamental step forward in the evaluation of the vestibular system. It enables binocular analysis of all six semicircular canals and does not require the patient to wear any goggles: all results are obtained from the analysis of the patient's head and eye movements, recorded from a remote camera.

Featuring a camera positioned directly in front of the patient, SYNAPSYS VHIT eliminates any physical contact with the device during use. No manual calibration is required — advanced software automatically adjusts settings using a facial recognition system.

SYNAPSYS VHIT is the only system on the market that allows testing of children as young as 3 months of age. Tight-fitting masks are not tolerated by infants, and this remote camera system allows easy testing of newborns and children of all ages.

Request Info

SEPARATE ANALYSIS OF EACH SEMICIRCULAR CANALS

With SYNAPSYS VHIT, investigating all 6 high-frequency semicircular canals, as well as analyzing the strategy of generating saccades — overt and covert — has never been easier and faster. The system enables binocular assessment of the lateral canals and vertical planes, including RALP and LARP, supporting a complete evaluation of vestibular function.
Thanks to video and audio prompts during the examination, the software guides the operator in executing the manoeuvres accurately. By detecting the direction of the patient’s head movements, the system automatically identifies the investigated plane, enabling the entire examination to be performed without moving away from the patient.

NON-INVASIVE TEST FOR THE PATIENT

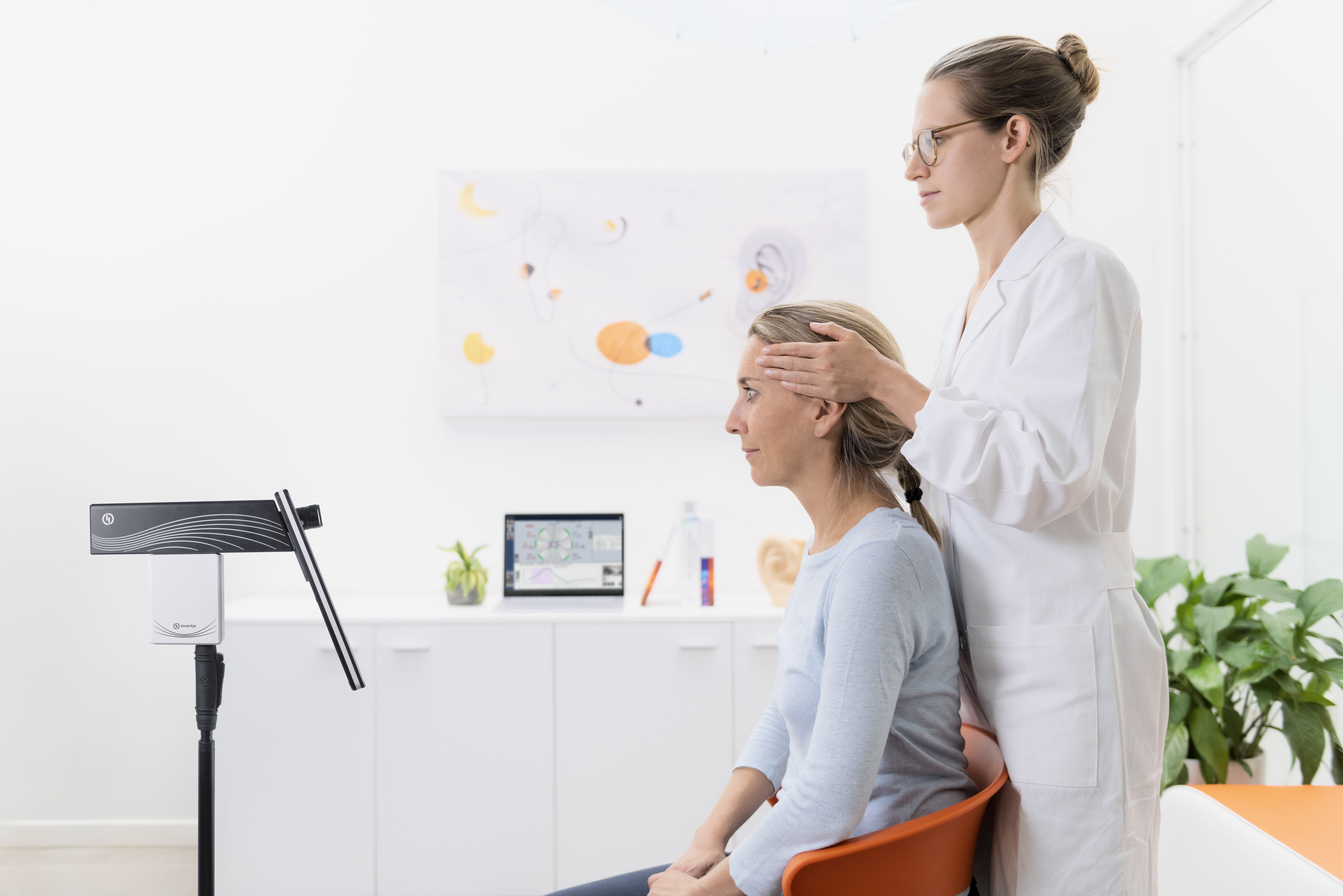

The SYNAPSYS VHIT system uses a unique technology that makes it very easy to use: a camera is positioned 1 meter far from the patient and frames the face while the doctor performs the manoeuvres on the patient’s head.
Unlike other VHIT systems, SYNAPSYS VHIT does not require the patient to wear a mask, increasing comfort and reducing artifacts caused by involuntary mask movements. No manual calibration is required: the software automatically recognizes the patient’s face and eye region, supporting faster setup and more repeatable acquisition.

ANALYZE EACH CANAL AT A GLANCE

The SYNAPSYS VHIT test is simple and fast, taking less than 5 minutes, and offers valuable information on the functioning of the semicircular canals and on saccadic phenomena.

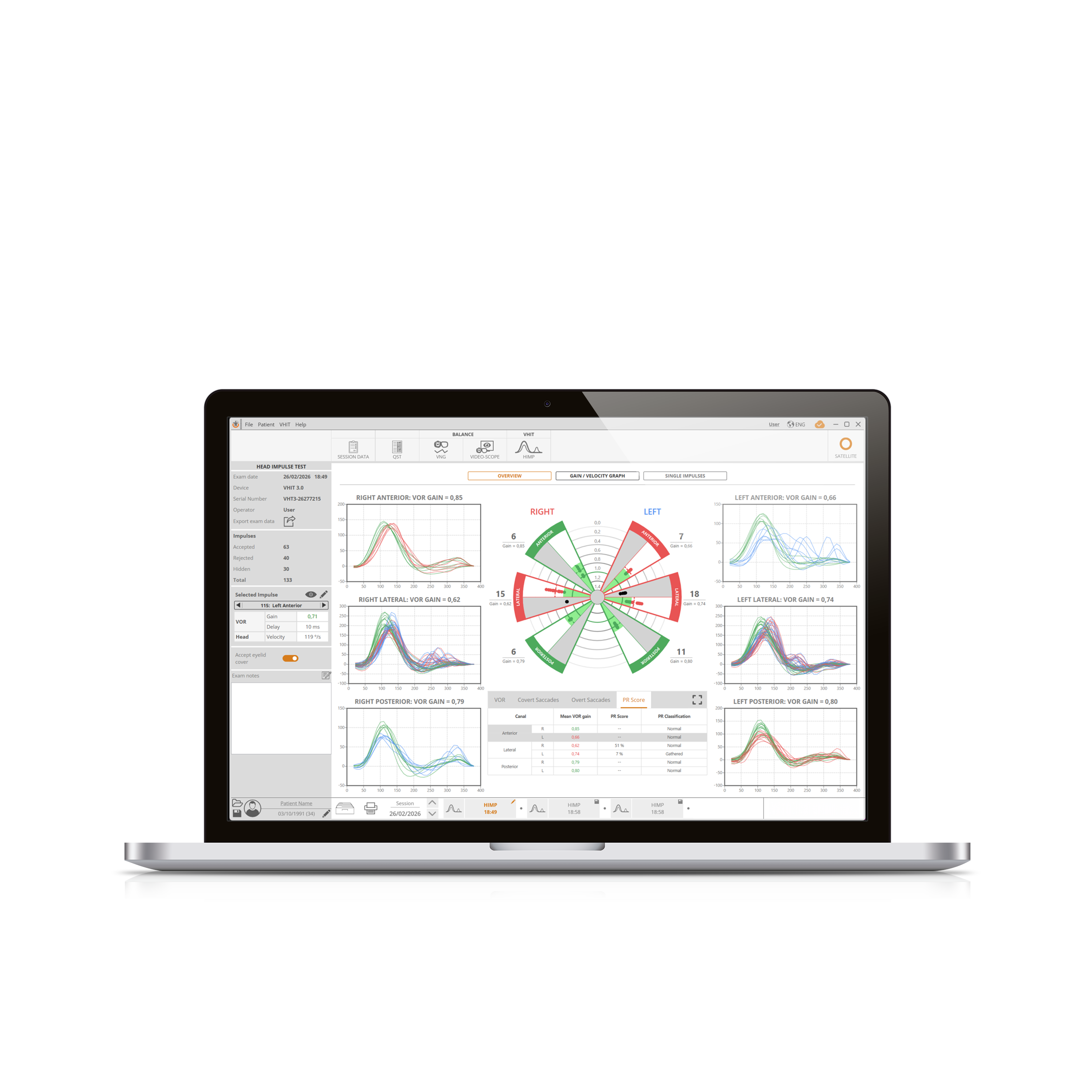

With high-speed acquisition up to 250 Hz, the system supports precise tracking of fast head and eye movements and provides immediate results for each canal during acquisition, including VOR gain, gain shift, PR Score, and overt and covert saccades.

IDEAL TO COMPLETE YOUR VESTIBULAR ANALYSIS

SYNAPSYS VHIT is available in 2 scalable software versions:

• VHIT Basic, for the analysis of the lateral canals only
• VHIT Plus, for the analysis of all the six canals

Complementary to the VNG examination, SYNAPSYS VHIT analyzes each semicircular canal at high frequencies. It can therefore detect pathologies that could not be detected with the traditional VNG examination.

Innovative

No Mask Required

SYNAPSYS VHIT uses a remote camera system, with no goggles or head-mounted devices required.

Suitable for all needs

Patients of all ages

The goggle-free approach enables comfortable testing from infants as young as 3 months to elderly and sensitive patients.

Complete and fast

Complete Binocular Six-Canal Analysis

Assess all six semicircular canals in less than 5 minutes, with binocular analysis and high-speed acquisition up to 250 Hz.

HARDWARE SPECIFICATIONS	Remote camera system Motor-free: no device movement required during testing No goggles or head-mounted devices required Fixed remote camera setup at 90–100 cm from the patient Adjustable supporting monopod Hands-free operation via USB footswitch
SOFTWARE SPECIFICATIONS	Integrated into the Inventis Maestro software ecosystem Automatic face recognition and eye ROI detection No manual calibration required Binocular analysis of lateral and vertical canals, including RALP and LARP planes Analysis of VOR, overt and covert saccades Expanded result parameters, including VOR gain, gain shift, PR Score, amplitude, velocity and latency of saccades Customizable VOR reference values Canalogram and results table Voice messages and guided acquisition Video recording and playback for each maneuver
REQUIRED SOFTWARE	SYNAPSYS VHIT software is installed as a module within the Inventis Maestro software suite Compatible with OTOAccess® Database Possibility to manage patients’ data in a unique database Store and print exam reports Compatible with SYNAPSYS VHIT 3.0 hardware
SENSOR SPECIFICATIONS	Type: CMOS Mono Camera acquisition rate: up to 250 Hz Max resolution: 1456 × 1088 pixels Pixel size: 3.45 × 3.45 μm Sensor class: 1/3” Shutter type: Global
TIMINGS	Camera acquisition rate: up to 250 Hz Complete six-canal test in less than 5 minutes Exposure time: 2.4 ms
CAMERA PROPERTIES	Remote camera with fixed focus at 90–100 cm Focal length: 20 mm / 0.787 in. Field of vision: 7.3° horizontal, 3.9° vertical
CAMERA CONTROLS	Automatic gain control Manual fixed exposure control Automatic ROI detection for eye centering
COMPUTER INTERFACE	Connection: through USB 3.0 port USB cable length: 3 m / 118.1 in.
POWER SUPPLY	Power supply: 12V DC – 1A, through an external medical-grade 100–240 Vac 50/60 Hz power supply Power supply cord length: 5 m / 196.85 in.
MECHANICS	Motor-free design Device size: 40 × 10 × 30 cm / 15.7 × 3.9 × 11.8 in. Device weight: 2 kg / 4.4 lb, cable excluded Adjustable monopod size: 710–1070 mm / 27.9–42.1 in. Monopod weight: 4 kg / 8.8 lb
ILLUMINATION	Image acquisition under illumination provided by a grid of 7 × 8 IR LEDs IR LED peak wavelength: 830 nm Power per LED: 70 mW/sr
PC MINIMUM REQUIREMENTS	OS: Windows 10-64 bits and Windows 11 CPU: Intel® i5, 10th generation or above (e.g. for 250 fps), 2.0GHz RAM: 8 GB (minimum 16 GB for 250 fps) Storage: SSD 512 GB USB connection: 1 USB 3.0 port for device connection
FREIGHT PACKING	Size (WxDxH): 80 x 40 x 20 cm / 31.5 x 15.7 x 7.9 in. Gross weight: approx. 9.5 kg / 20.9 lb

Technical Sheet

SYNAPSYS VHIT

SYNAPSYS VHIT

Technical Data
